Hex Packet Decoder

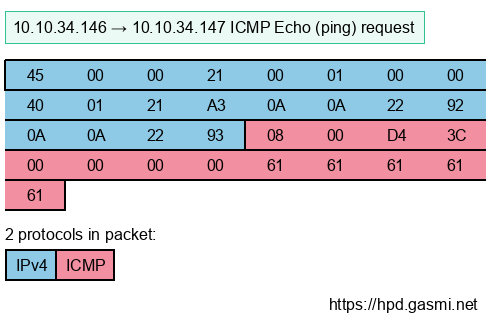

0	1	2	3	4	5	6	7
45	00	00	21	00	01	00	00
40	01	21	A3	0A	0A	22	92
0A	0A	22	93	08	00	D4	3C
00	00	00	00	61	61	61	61
61

Frame 1: Packet
- Section number: 1
- Interface id: 0 (Interface, hpd0)
  - Interface name: Interface, hpd0
- Encapsulation type: Raw IPv4 (129)
- Arrival Time: Jun 9, 2026 00:40:15.000001000 CEST
- UTC Arrival Time: Jun 8, 2026 22:40:15.000001000 UTC
- Epoch Arrival Time: 1780958415.000001000
- Time shift for this packet: 0.000000000 seconds
- Time since reference or first frame: 0.000000000 seconds
- Frame Number: 1
- Frame Length: 33 bytes (264 bits)
- Capture Length: 33 bytes (264 bits)
- Frame is marked: False
- Frame is ignored: False
- Protocols in frame: raw:ip:icmp:data
- Character encoding: ASCII (0)
Raw packet data
Internet Protocol Version 4
- 0100 .... = Version: 4
- .... 0101 = Header Length: 20 bytes (5)
- Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT)
  - 0000 00.. = Differentiated Services Codepoint: Default (0)
  - .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0)
- Total Length: 33
- Identification: 0x0001 (1)
- 000. .... = Flags: 0x0
  - 0... .... = Reserved bit: Not set
  - .0.. .... = Don't fragment: Not set
  - ..0. .... = More fragments: Not set
- ...0 0000 0000 0000 = Fragment Offset: 0
- Time to Live: 64
- Protocol: ICMP (1)
- Header Checksum: 0x21a3 [correct]
- Header checksum status: Good
- Calculated Checksum: 0x21a3
- Source Address: 10.10.34.146
- Destination Address: 10.10.34.147
- Stream index: 0
Internet Control Message Protocol
- Type: Echo (ping) request (8)
- Code: 0
- Checksum: 0xd43c [correct]
- Checksum Status: Good
- Identifier (BE): 0 (0x0000)
- Identifier (LE): 0 (0x0000)
- Sequence Number (BE): 0 (0x0000)
- Sequence Number (LE): 0 (0x0000)
- Data ????
  - Data: 6161616161
  - Length: 5

0	1	2	3	4	5	6	7
45	00	00	21	00	01	00	00
40	01	21	A3	0A	0A	22	92
0A	0A	22	93	08	00	D4	3C
00	00	00	00	61	61	61	61
61

0	1	2	3	4	5	6	7
45	00	00	21	00	01	00	00
40	01	21	A3	0A	0A	22	92
0A	0A	22	93	08	00	D4	3C
00	00	00	00	61	61	61	61
61

H Hex Packet Decoder

0	1	2	3	4	5	6	7
45	00	00	21	00	01	00	00
40	01	21	A3	0A	0A	22	92
0A	0A	22	93	08	00	D4	3C
00	00	00	00	61	61	61	61
61
