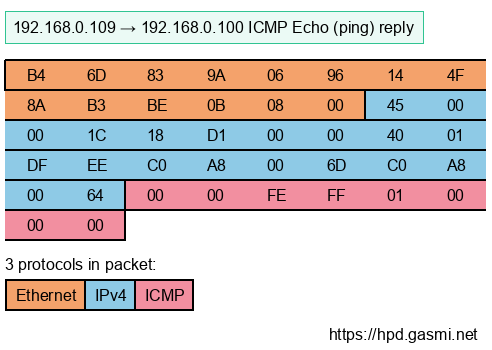

Hex Packet Decoder

0	1	2	3	4	5	6	7
B4	6D	83	9A	06	96	14	4F
8A	B3	BE	0B	08	00	45	00
00	1C	18	D1	00	00	40	01
DF	EE	C0	A8	00	6D	C0	A8
00	64	00	00	FE	FF	01	00
00	00

Frame 1: Packet
- Section number: 1
- Interface id: 0 (Interface, hpd0)
  - Interface name: Interface, hpd0
- Encapsulation type: Ethernet (1)
- Arrival Time: Jun 8, 2026 07:01:11.000001000 CEST
- UTC Arrival Time: Jun 8, 2026 05:01:11.000001000 UTC
- Epoch Arrival Time: 1780894871.000001000
- Time shift for this packet: 0.000000000 seconds
- Time since reference or first frame: 0.000000000 seconds
- Frame Number: 1
- Frame Length: 42 bytes (336 bits)
- Capture Length: 42 bytes (336 bits)
- Frame is marked: False
- Frame is ignored: False
- Protocols in frame: eth:ethertype:ip:icmp
- Character encoding: ASCII (0)
Ethernet II
- Destination: Intel_9a:06:96 (b4:6d:83:9a:06:96)
  - .... ..0. .... .... .... .... = LG bit: Globally unique address (factory default)
  - .... ...0 .... .... .... .... = IG bit: Individual address (unicast)
- Source: Intel_b3:be:0b (14:4f:8a:b3:be:0b)
  - .... ..0. .... .... .... .... = LG bit: Globally unique address (factory default)
  - .... ...0 .... .... .... .... = IG bit: Individual address (unicast)
- Type: IPv4 (0x0800)
- Stream index: 0
Internet Protocol Version 4
- 0100 .... = Version: 4
- .... 0101 = Header Length: 20 bytes (5)
- Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT)
  - 0000 00.. = Differentiated Services Codepoint: Default (0)
  - .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0)
- Total Length: 28
- Identification: 0x18d1 (6353)
- 000. .... = Flags: 0x0
  - 0... .... = Reserved bit: Not set
  - .0.. .... = Don't fragment: Not set
  - ..0. .... = More fragments: Not set
- ...0 0000 0000 0000 = Fragment Offset: 0
- Time to Live: 64
- Protocol: ICMP (1)
- Header Checksum: 0xdfee [correct]
- Header checksum status: Good
- Calculated Checksum: 0xdfee
- Source Address: 192.168.0.109
- Destination Address: 192.168.0.100
- Stream index: 0
Internet Control Message Protocol
- Type: Echo (ping) reply (0)
- Code: 0
- Checksum: 0xfeff [correct]
- Checksum Status: Good
- Identifier (BE): 256 (0x0100)
- Identifier (LE): 1 (0x0001)
- Sequence Number (BE): 0 (0x0000)
- Sequence Number (LE): 0 (0x0000)

0	1	2	3	4	5	6	7
B4	6D	83	9A	06	96	14	4F
8A	B3	BE	0B	08	00	45	00
00	1C	18	D1	00	00	40	01
DF	EE	C0	A8	00	6D	C0	A8
00	64	00	00	FE	FF	01	00
00	00

0	1	2	3	4	5	6	7
B4	6D	83	9A	06	96	14	4F
8A	B3	BE	0B	08	00	45	00
00	1C	18	D1	00	00	40	01
DF	EE	C0	A8	00	6D	C0	A8
00	64	00	00	FE	FF	01	00
00	00

H Hex Packet Decoder

0	1	2	3	4	5	6	7
B4	6D	83	9A	06	96	14	4F
8A	B3	BE	0B	08	00	45	00
00	1C	18	D1	00	00	40	01
DF	EE	C0	A8	00	6D	C0	A8
00	64	00	00	FE	FF	01	00
00	00
